Setting up a Reverse Proxy using Apache

⚠️ Warning: This guide provides a general overview of the configuration process. Technical requirements vary by environment; always consult your internal IT or security teams before applying these settings. If you would like to complete this setup with a Foleon technical expert, please contact Foleon Support or your Customer Success Manager.

1. Adding your domain into Foleon

login to Foleon

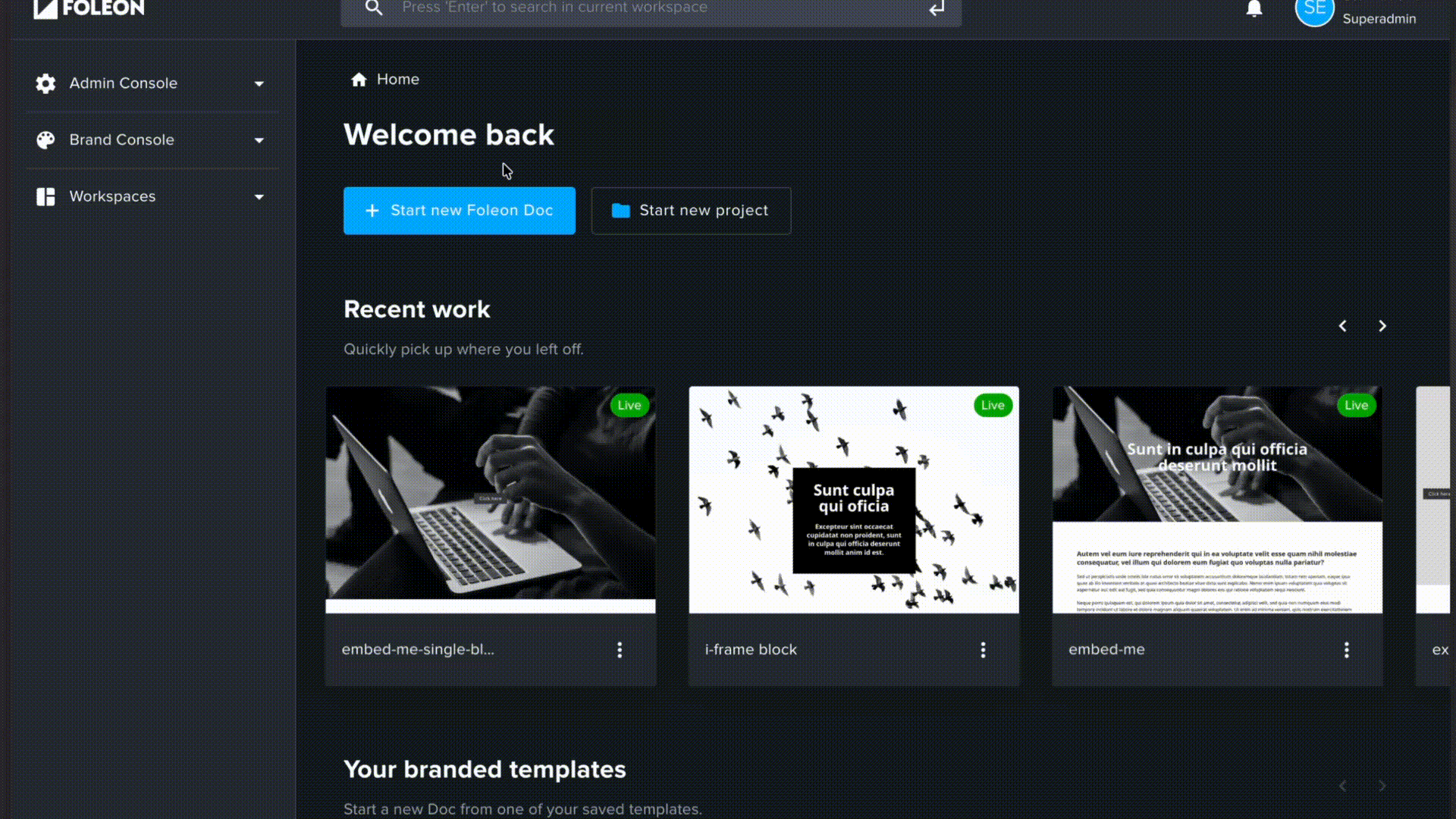

go to "Domains" in the Admin Console (or your workspace)
Use HTTPS protocol to ensure End to End encryption
Click "Create new Domain"
Fill in the domain
Click the checkbox for reverse proxy
(optional) enter your certificate details
Click "save"

2. Configure the Apache VirtualHost Block

To route traffic, you will add a <Location> block to your Apache VirtualHost configuration file (typically located in /etc/apache2/sites-available/ for Debian/Ubuntu or /etc/httpd/conf.d/ for RHEL/CentOS).

NOTE: Make sure you have the required Apache modules enabled: mod_proxy, mod_proxy_http, mod_headers, and mod_ssl.

The Code Block

Paste the following configuration inside your existing <VirtualHost *:443> block.

# Ensure SSL Proxy Engine is enabled so Apache can talk to Foleon over HTTPS
SSLProxyEngine on

# Define the subfolder path you want to use
<Location /en/guides/>
    # Proxy Headers
    # Passes the original request details to Foleon
    RequestHeader set X-Forwarded-Host expr=%{HTTP_HOST}
    RequestHeader set X-Forwarded-Proto expr=%{REQUEST_SCHEME}
    RequestHeader set X-Real-IP expr=%{REMOTE_ADDR}

    # Connection Settings
    # EU: https://s1.foleon.com/en/guides/
    # US: https://s1.us.foleon.com/en/guides/
    ProxyPass "https://s1.foleon.com/en/guides/"
    ProxyPassReverse "https://s1.foleon.com/en/guides/"
</Location>

3. Variable Reference

You can customize the proxy behavior by adjusting these specific values within the configuration:

Variable / Directive	Example Value	Description
`<Location>`	`/en/guides/`	The subfolder path on your domain where the content will appear. When applying your domain to your project, ensure the basepath also starts with /en/guides/.
ProxyPass & ProxyPassReverse	`https://s1.foleon.com/en/guides/`	Use `s1.foleon.com` for EU accounts and `s1.us.foleon.com` for US accounts, together with the location path.
X-Forwarded-Host	`expr=%{HTTP_HOST}`	Passes your actual domain name to Foleon so it knows which content to serve.

4. Deploy and Test

Test the configuration: Run the following command in your terminal to ensure there are no syntax errors:
- Ubuntu/Debian: sudo apache2ctl configtest
- RHEL/CentOS: sudo apachectl configtest
Reload Apache: If the test returns Syntax OK, apply the changes:
- Ubuntu/Debian: sudo systemctl reload apache2
- RHEL/CentOS: sudo systemctl reload httpd
Verify: Navigate to https://yourcompany.com/en/guides/ (or your chosen path). A Foleon 404 should now show. Once you finish step 5, your Foleon content should load invisibly under your domain.

SSL requirement: Foleon requires HTTPS. Ensure your Nginx server has a valid SSL certificate (e.g., via Let's Encrypt) active for the host domain.

5. Apply a domain to a project

Login to foleon.
Go to project settings.
Select the newly created domain.
Setup the basepath / subfolder you want to use to publish your documents on.
Make sure to publish a document in this project.

TIP: You can setup multiple projects with the same basepath e.g. /en/guide/finance/ and /en/guide/legal/
